聚宝盆Technical parameters:

聚宝盆Input voltage: three - phase four - wire 3 8 0 V 1 0 %

Input power: single burner 1, 2 K W

聚宝盆Heating mode: electromagnetic induction heating

Heating temperature: 4, 3, 0 degrees ~ 5, 0 degrees

聚宝盆Cooling mode: air cooling

Operation mode: each burner is independent of P L C semi-automatic control

聚宝盆Temperature control: P, L and C automatic isothermal and thermal insulation control

Protection mode: short - phase, anti - phase, over - current, short - circuit, over - temperature protection, time - out protection, etc

Display output: digital display current temperature, working current, fault code; The status indicator shows the working status and fault indication.

Case material: high temperature spraying, stainless steel (reservation required)

Features:

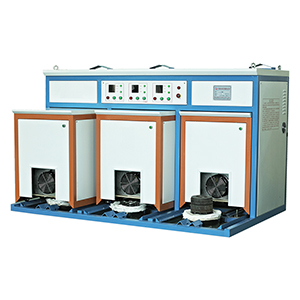

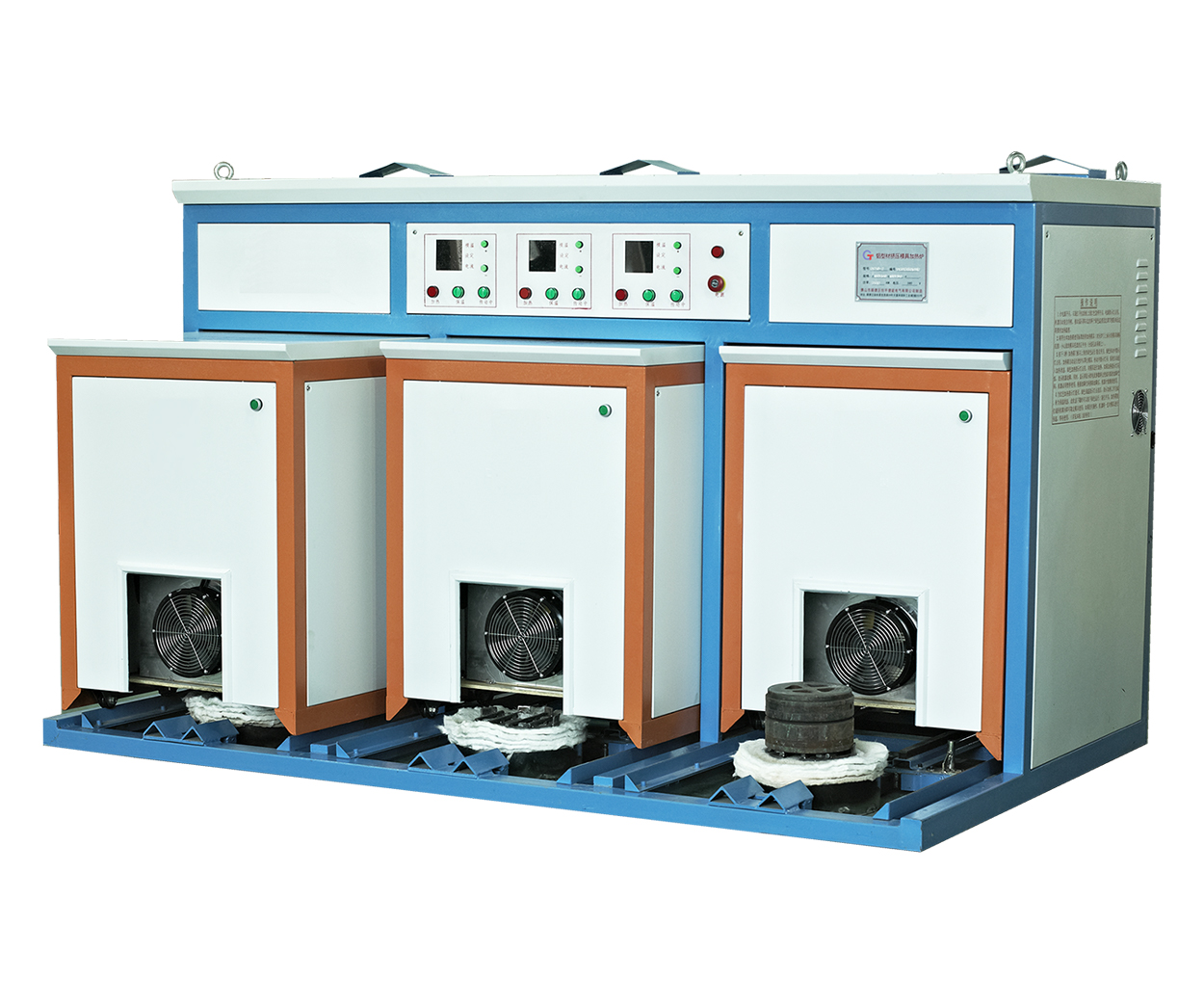

聚宝盆1. The G series mould furnace adopts the loading/unloading mode with the furnace head (coil) moving. The furnace head drives the light heating coil to move, the driving part runs stably, and the part loses little; The pallet placed on the mold is fixed and directly touches the ground. This way, the weight of the mold is not limited, and it is not afraid of the impact of the mold.

2. Adopt pinion and rack to drive the furnace head in and out and chain to drive the heating coil up and down, with long mechanical life and good stability.

3. Independent indicator light can be seen at a distance, and each state is clear at a glance. Heating, heat preservation, transmission.

Model specification:

model

The number of furnace head can be customized diameter can be customized height heating time size

J r-g 250 2 less than 130 ~ 250 60 ~ 250 15 ~ 25 1540 * 1400 * 1480

J r-g 250 3 3 less than 130 ~ 250 60 ~ 250 15 ~ 25 2285 1400 1480

J r-g 350 2 2 less than 250 ~ 350 60 ~ 350 25 ~ 55 1790 * 1620 * 1540

J r-g 350 3 3 less than 250 ~ 350 60 ~ 350 25 ~ 55 2710 * 1620 * 1540

聚宝盆J r-g 400 2 2 less than 350 ~ 400 60 ~ 380 30 ~ 75 1890 * 1720 * 1580

J r-g 400 3 3 less than 350 ~ 400 60 ~ 380 30 ~ 75 2860 * 1720 * 1580

聚宝盆J r-g 450 2 2 less than 400 ~ 450 60 ~ 380 50 ~ 90 1990 * 1820 * 1580

J r-g 450 3 3 less than 400 ~ 450 60 ~ 380 50 ~ 90 3010 * 1820 * 1580

Note: dimension unit in the table: mm; Time unit: minutes.

聚宝盆Molds with a diameter of more than 4, 50 and 0 m can be customized according to the actual specifications. The model is single burner.

In order to ensure the heating effect, it is suggested that the heated mold should be in the range of customized diameter - 60 m m, and the height should be more than half of the customized height.
